44.990 kr – 51.490 kr

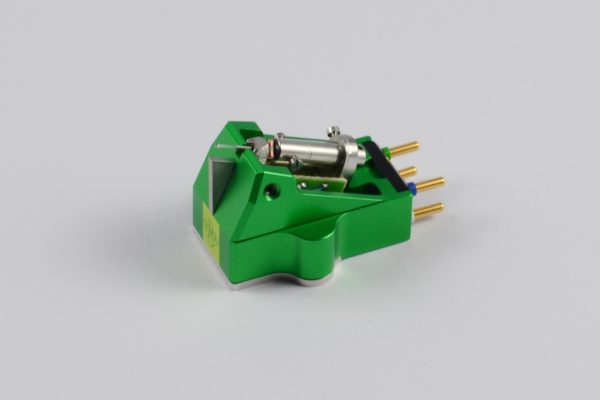

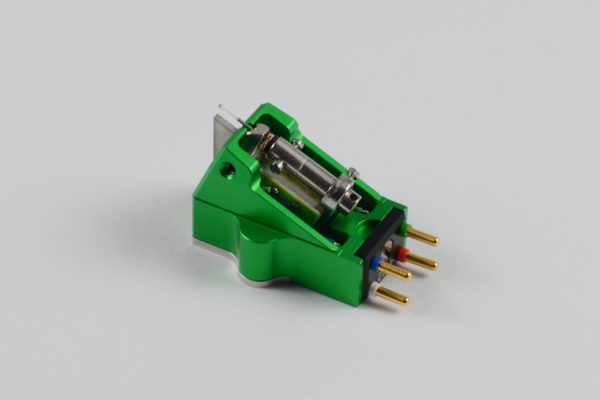

The JSD Lime was introduced in 2018 and is characterized by a sandwich-body made of aluminium and a special brass.
All EMT reference-line cartridges feature a multi-facet diamond on sapphire cantilever. Our unique assembling technology makes it possible to tune the individual sound properties of this high-resolution transducer unit to maximum musicality.
JSD reference series cartridge
Diamond on saphhire cantilever
Sandwich body
| Diamond: | MR HP |
| Cantilever: | Sapphire |
| Transducer: | MC Stereo |
| Magnet: | AlNiCo, nickel-plated |
| Body: | Aluminium / brass, lime anodized |
| Connection: | 1/2″ – 4pin |
| Vertical Tracking Angle: | 23° |
| Weight: | 12g |
| Tracking force: | 2,4g |
| Output voltage: | 1.05mV @ 5cm/s |
| Compliance: | 12µm/mN |
| Frequency response: | 20 – 30‘000Hz |
| Impedance: | Selectable |
| Recommended load: | 200 – 300Ω |
