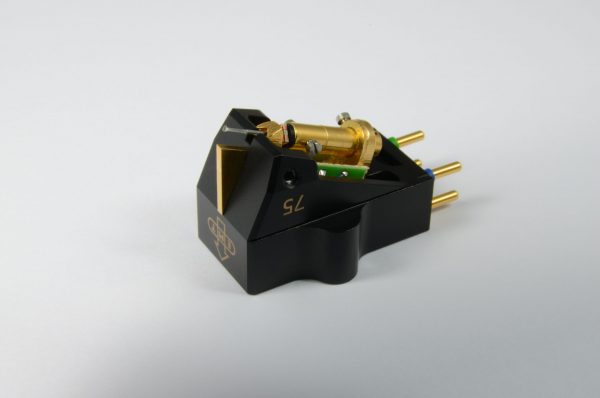

The body of the JSD Pure is fitted with a high-densitiy layer that reduces unwanted resonance behaviour between cartridge body and tonearm.The most modern generator features a multi-facet diamond on sapphire cantilever. Our unique assembling technology makes it possible to tune the individual sound properties of this high-resolution transducer unit to maximum musicality.
JSD serien fra EMT kan bestilles med 0,3mV, 0,6mV eller standard EMT 1mV output, alt dette uten ekstra kostnad. De kan også bestilles med spole i rent sølv til en merkostnad.
| Diamond: | MR HP |
| Cantilever: | Sapphire |
| Transducer: | MC Stereo |
| Coil Standard: | Pure Copper |
| Coil Option AG: | Pure Silver |
| Magnet: | AlNiCo, gold-plated |
| Body: | Aluminium, black anodized |
| Connection: | 1/2″ – 4pin |
| Vertical Tracking Angle: | 23° |
| Weight: | 10g |
| Tracking force: | 2,4g |
| Output voltage: | 1.05mV @ 5cm/s |
| Compliance: | 12µm/mN |
| Frequency response: | 20 – 30‘000Hz |
| Impedance: | 2x 24Ω |
| Recommended load: | 200 – 300Ω |
