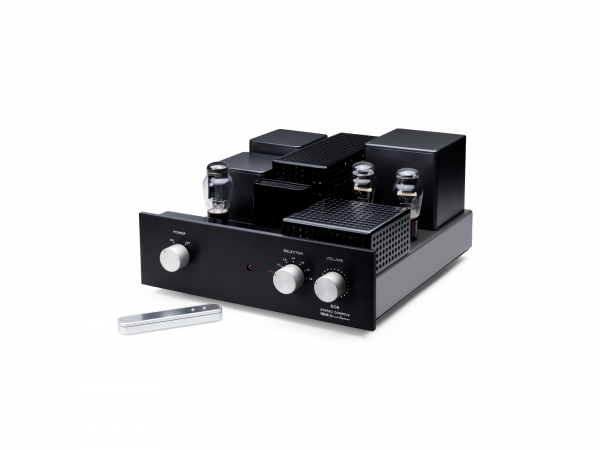

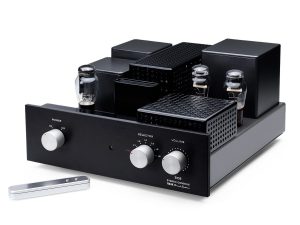

SC8 – Triode Pre-Amplifier
The Magic of Directly Heated Triodes
In the world of ultimate HiFi nowadays, we have a feeling that importance of preamplifiers is still severely underestimated. In fact, the preamplifier is not only the control center, it is the heart and the soul of the entire reproduction chain, being responsible for establishing overall balance and harmony in the system.
When we developed our first preamplifier, we did it with only one goal – to have music that emerges “live” right in front of us – directly and physically tangible.
Once you will hear DHT (Directly Heated Triode) NOS tubes from the 1930ies to 1940ies, you will understand why there is no way back to conventional tube circuits and exactly this is the reason why we deployed them in our SC8.
For the Stereo Console SC8, we use exclusively 71A DHT as an output tube, while rectification is being done by U52 or 5u4g NOS tubes. As in all of our products we pay special attention to power supply and for the SC8 we use in house specially developed and manufactured hand made line output transformer.
DHT 71A / 171A triode
driver tube – ecc802s / 12au7 / 5814 / 5963
compartible e80cc – 12sn7 via adapter
4 x line-input / RCA/XLR
2 x line output / RCA/XLR
P-5000 hand made Line output transformer (output impedance 100 ohm)
point to point wired
M6-paper oil power supply, (optional, weight 8kg extra)
48 step Volume control
5000-H autoformer volume control 34 Step (optional)
tube Rectifier u52 / 5u4g (optional) 274B)
power Supply 29kg
dimensions: 420mm x 460mm x 250mm B x H x T
handmade in Stansstad Lake Lucerne, Switzerland
PRODUCTION AND PHILOSOPHY
I live and work in Central Switzerland next to beautiful Lake Lucerne, surrounded by mountains. Empowered by my wonderful family, I work with a team of unique experts to make those audio dreams come true. I take a lot of time to develop and manufacture high efficiency coaxial speakers, tube amps and DACs. Deeply rooted in audio history, I am also fully aware of today’s manufacturing advantages and apply them whenever they will be useful. Please take your time to experience my components and I can promise you, it will only take moments before you realize that you are listening to something special, something musical: a gateway to the music. Let me introduce you to some secrets behind the making of these products.
We at Tobian Sound Systems believe that the beauty of our audio products lies in the hands of the makers. I may be the originator and driving force, but the products have more than one father.
Our wire is very slowly dragged and carefully isolated with natural resin and then baked. The next step is the alignment of the wire on the core. The core of the transformer is made of a special, grain oriented steel, that only one company in the world makes – in Switzerland. Each layer of oval-section wire is then hammered into one homogenous surface. It is along the outside of this augmented surface that the signal will travel. Each layer is then isolated with mu-metal shielding before the next layer goes on. After a transformer is finished, it is submerged in natural resin, and baked. Every step of the process, the materials, the execution, the duration of each phase, the precision that only comes from experience, turns these transformers into something you cannot just buy. You have to be dedicated to have them made like this. It’s as if they are dreamt into reality. Put your hand on one of those transformers while the amp is on – are you sure it’s really on? You cannot tell. Like driving a Bentley: only when you look at the dashboard do you realize how fast you are really going.
